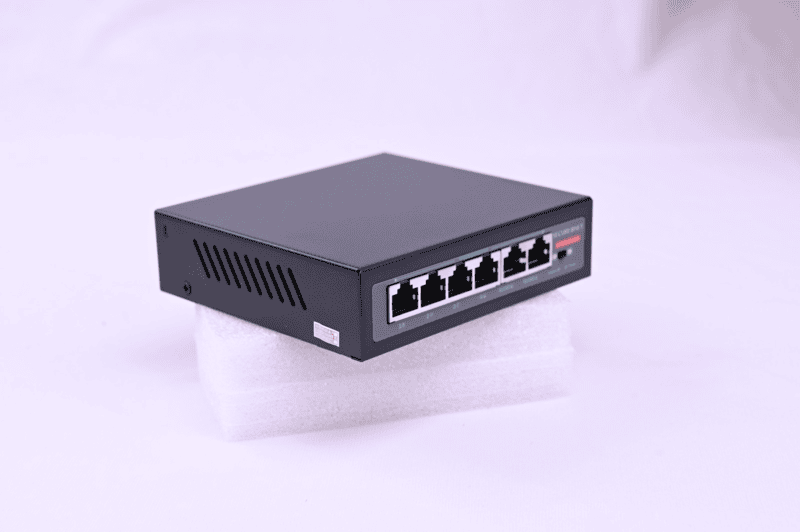

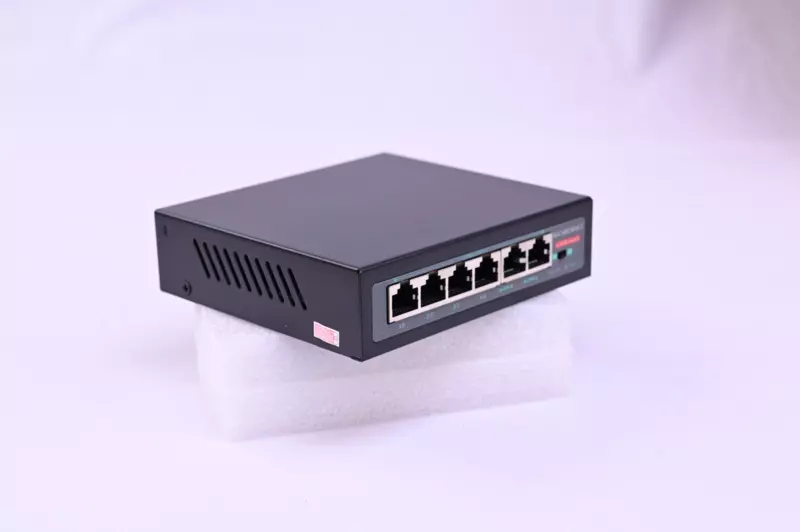

Secure Net POE SWITCH 4 PORT 10/100 MBPS - S-POE SW 1004
Specification | Details |
|---|
Model | S-POE SW 1004 |
Product Type | Unmanaged Fast Ethernet PoE Switch |
PoE Ports | 4 × 10/100 Mbps RJ45 PoE Ports |
Uplink Ports | 1 × 10/100 Mbps RJ45 Uplink Port |
PoE Standard | IEEE 802.3af / IEEE 802.3at (Auto-sensing) |
Total PoE Budget | Up to 60W (typically 15.4W per port, max 30W on selected ports) |
Switching Capacity | 1.0 Gbps |
MAC Address Table | 1K |
Buffer Memory | 768 Kbps (typical for 5-port PoE switches) |
Transmission Method | Store-and-Forward |
LED Indicators | Power, Link/Activity, PoE Status |
Power Input | 48V DC (via external power adapter) |
Installation | Desktop / Wall-Mountable |
Housing | Metal Enclosure |
Cooling | Fanless (Silent Operation) |
Operating Temperature | 0°C to 40°C |
Storage Temperature | -20°C to 70°C |
Humidity Range | 10%–90% RH, non-condensing |
Warranty | 1–2 Years (as per supplier or distributor) |
General
- TypesUnManaged
- Switching Capacity1 Gbit/s
- Port TypeRJ45
- No. Of RJ45 Ports4
- Rack MountingYes
