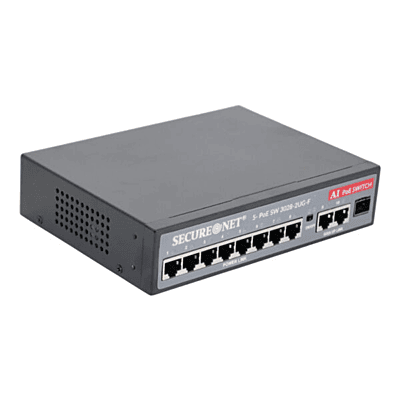

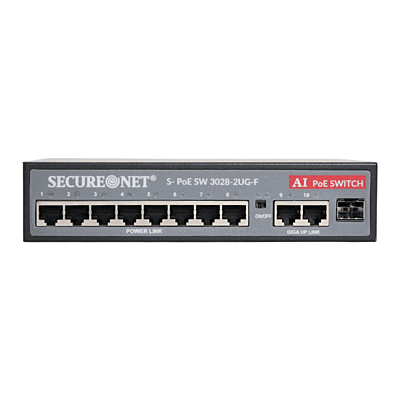

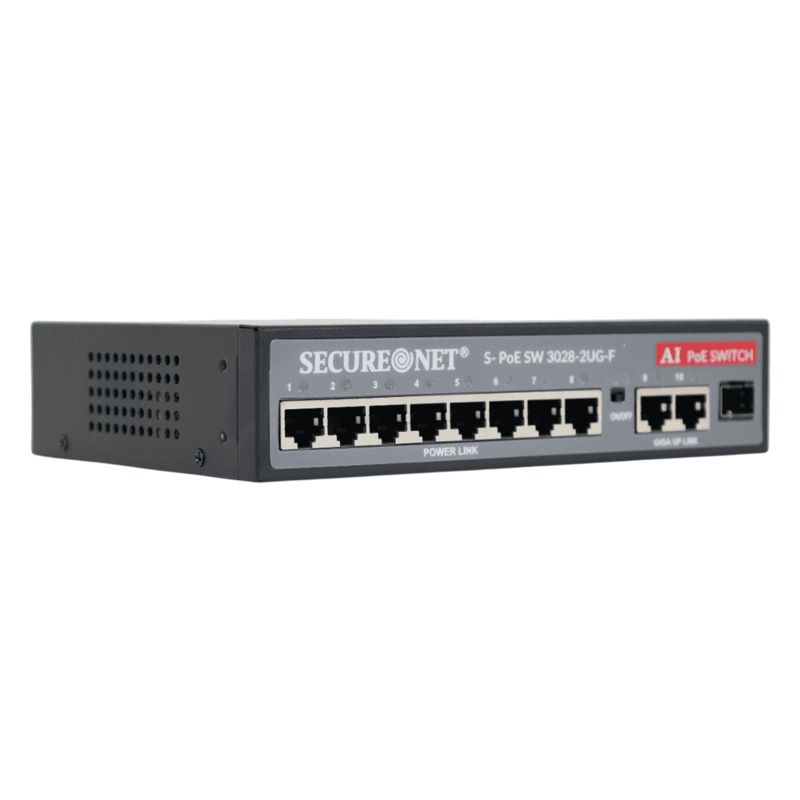

Secure Net POE Switch 8 port -S-POE SW 3028-2UG-F
Specification | Details |
|---|
Model | S-POE SW 3028-2UG-F |
Product Type | 8-Port Gigabit PoE Switch (Unmanaged) |
PoE Ports | 8 × 10/100/1000 Mbps RJ45 PoE Ports |
Uplink Ports | 2 × Gigabit RJ45 Uplink Ports + 1 × SFP (Fiber Uplink) |
PoE Standard | IEEE 802.3af / IEEE 802.3at (auto-sensing) |
PoE Budget | Up to 120W (typically 15.4W to 30W per port) |
Switching Capacity | 20 Gbps |
MAC Address Table | 4K Entries |
Buffer Memory | 1 Mbit |
Forwarding Rate | 14.88 Mpps |
Power Supply | Internal AC power (typically 100–240V AC, 50/60Hz) |
LED Indicators | Power, PoE, Link/Activity |
Enclosure | Metal, 1U height (desktop/rack-mountable) |
Cooling | Fanless – Passive thermal design |
Mounting | Desktop / Wall-Mountable / Rack-Compatible (brackets optional) |
Operating Temperature | 0°C to 40°C |
Storage Temperature | -20°C to 70°C |
Humidity Range | 10%–90% RH, non-condensing |
Certifications | CE, FCC, RoHS Compliant |
General
- TypesUnManaged
- Switching Capacity20 Gbit/s
- Port TypeRJ45
- No. Of RJ45 Ports8
