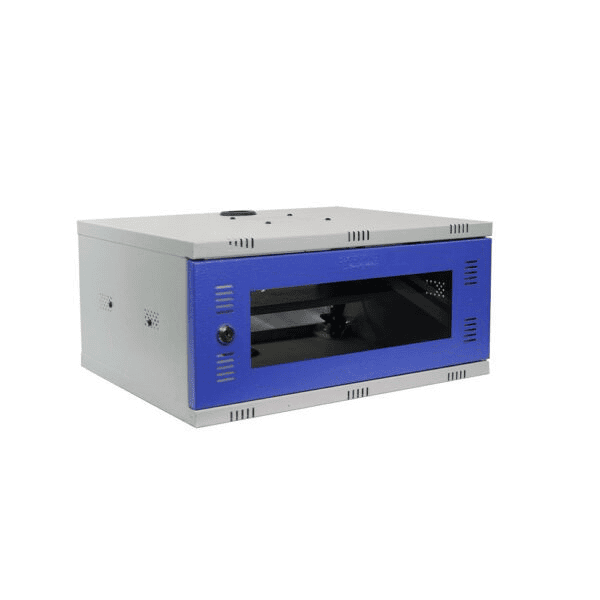

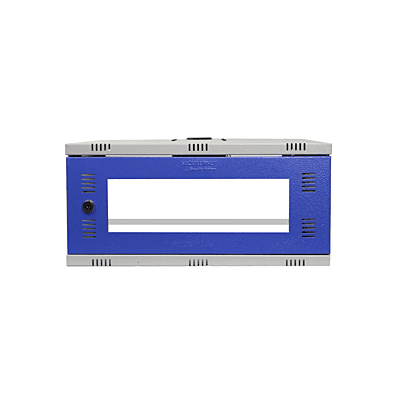

Secure Net RACK - S-R4U (4U RACK)
Specification | Details |
|---|
Model | S-R4U |
Rack Type | Wall-Mount Network Rack Enclosure |
Rack Height (Size) | 4U (Fits up to 4 standard 1U devices) |
External Dimensions | Approx. 260 mm (H) × 520 mm (W) × 330 mm (D) (typical Secure Net 4U) |
Material | CRCA Cold-Rolled Steel with Powder Coated Finish |
Surface Finish | Black Textured Powder Coating |
Mounting Type | Wall Mountable (rear mounting holes/brackets) |
Front Door | Lockable Acrylic or Vented Steel Door |
Side Panels | Removable (for cable management and airflow) |
Cooling Provision | 1 × Fan Mount on Top Panel (fan optional) |
Cable Entry | Top & Bottom Knockout Panels for cable routing |
Load Capacity | Up to 25–30 kg (depending on wall and anchor type) |
Ventilation | Side vents and fan mount for passive or active airflow |
Accessories Included | Mounting Hardware (Screws, Cage Nuts, Wall Anchors) |
Compliance | Compatible with EIA-310 19″ Rack Mount Equipment |
