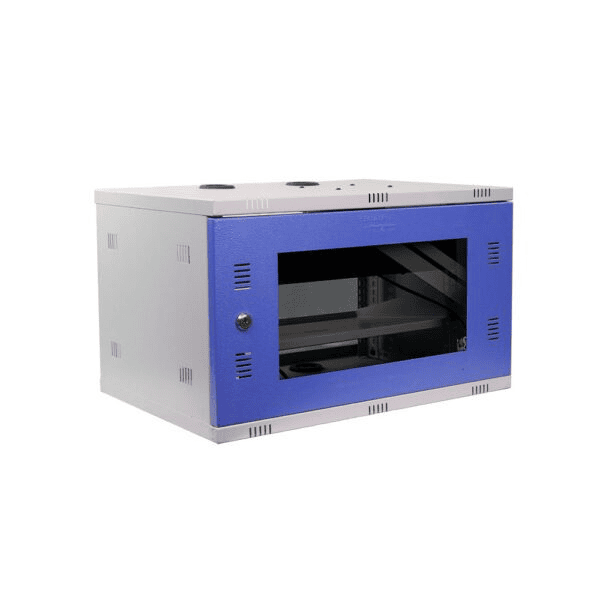

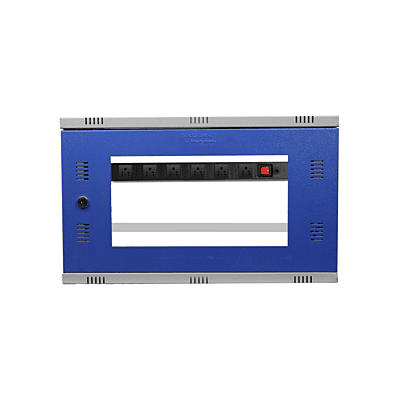

Secure Net RACK 6U (330X520X330)
Specification | Details |
|---|
Model | Secure Net RACK 6U |
Rack Type | Wall-Mount Network Rack Enclosure |
Rack Size (U Height) | 6U (Fits up to 6 standard 1U rack-mounted devices) |
External Dimensions | 330 mm (Height) × 520 mm (Width) × 330 mm (Depth) |
Internal Usable Depth | ~300 mm (varies by model, ideal for switches, DVR/NVR) |
Material | Cold-Rolled Steel Sheet (CRCA) |
Surface Finish | Powder-Coated – Matte Black or Gray |
Mounting Type | Wall-Mountable (Pre-drilled holes or bracket support) |
Door Type | Front Lockable Door (Acrylic/Tempered Glass or Vented Steel Panel) |
Side Panels | Removable with latches or screws (for cable access) |
Cooling Provision | 1× Fan Slot on Top Panel (Fan optional) |
Cable Entry | Top and Bottom Knockout Panels |
Load Capacity | Typically up to 30–40 kg |
Accessories Included | Mounting Screws, Cage Nuts, and Hardware Pack |
Compliance | Fits Standard 19” Rack-Mount Equipment (as per EIA-310 standard) |
General
- Rack capacity6U
