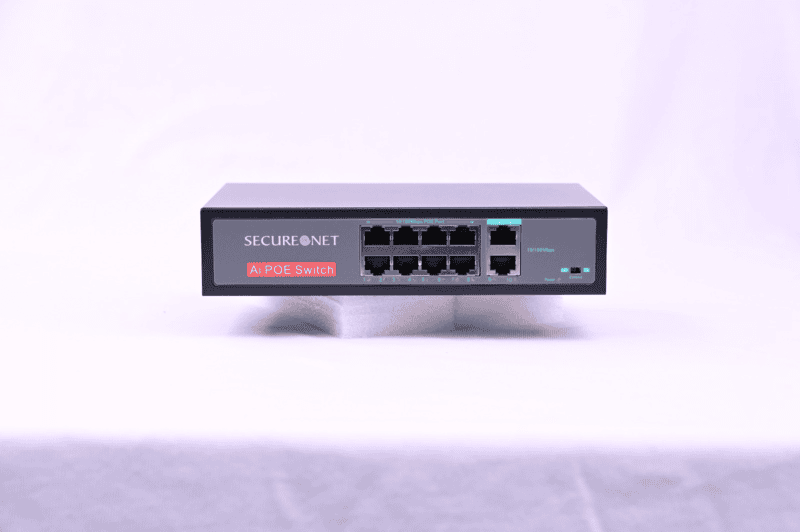

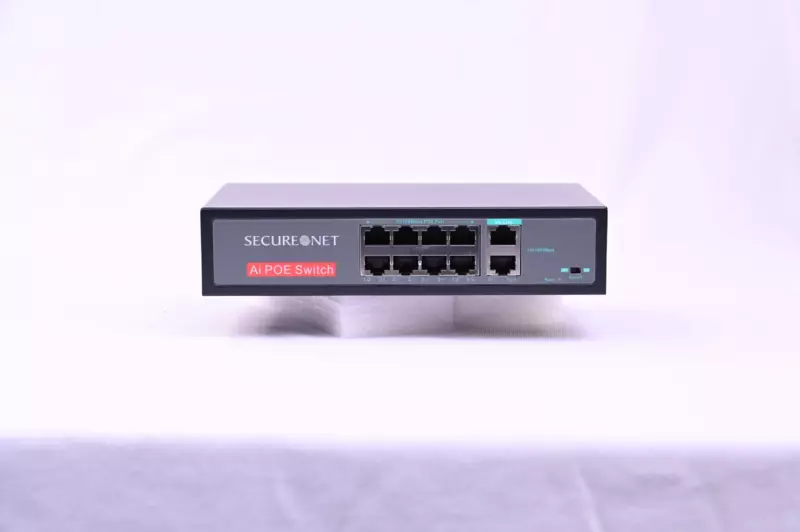

Secure Net POE SWITCH 8 PORT 10/100 MBPS+ 2 UPLINK PORT- S-POE SW 1008
Specification | Details |
|---|
Model | S-POE SW 1008 |
Product Type | Unmanaged PoE Switch |
PoE Ports | 8 × 10/100 Mbps RJ45 PoE Ports |
Uplink Ports | 2 × 10/100 Mbps RJ45 Uplink Ports |
PoE Standard | IEEE 802.3af / IEEE 802.3at (Auto-sensing) |
PoE Budget | Typically up to 96W (actual may vary by model batch) |
Switching Capacity | 1.6 Gbps (typical for 8-port 10/100 switches) |
MAC Address Table | 2K (typical) |
Transmission Method | Store-and-Forward |
Flow Control | IEEE 802.3x Full Duplex, Backpressure Half Duplex |
LED Indicators | Power, Link/Activity, PoE Status |
Power Input | External Adapter (usually 48V DC, 1.5–2A depending on PoE load) |
Installation | Desktop or Wall Mount (not rackmountable) |
Housing | Metal Casing |
Cooling | Fanless – Passive Cooling |
Operating Temperature | 0°C to 40°C |
Storage Temperature | -20°C to 70°C |
Humidity Range | 10%–90% RH Non-condensing |
Warranty | Typically 1–2 Years (check local dealer policy) |
General
- TypesUnManaged
- Switching Capacity1.6 Gbit/s
- Port TypeRJ45
- No. Of RJ45 Ports8
