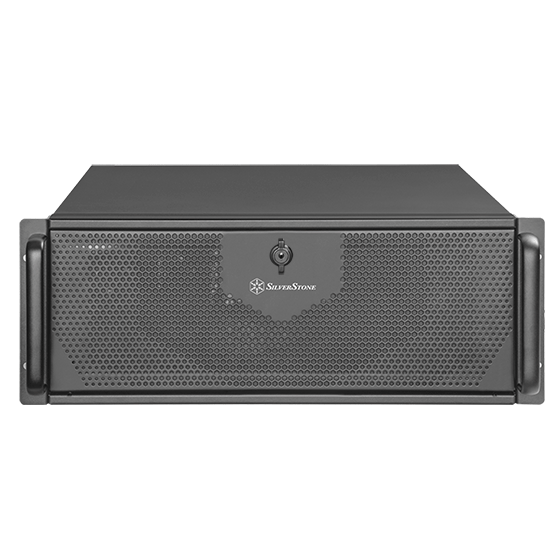

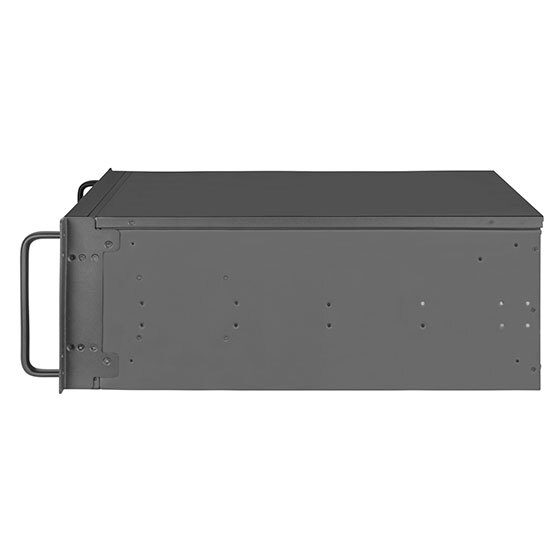

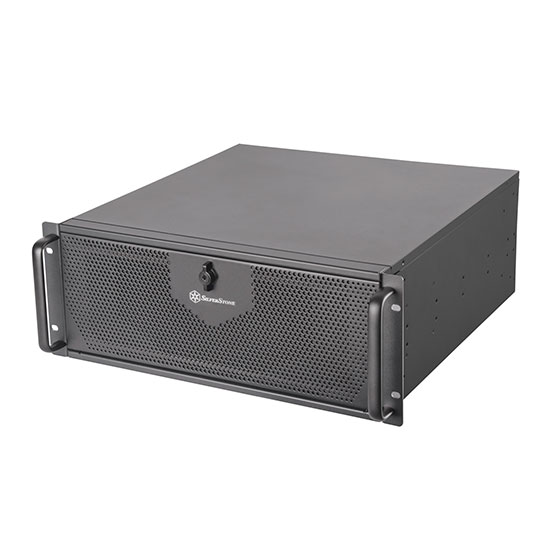

SilverStone 4U rackmount server chassis with liquid cooling compatibility (RM42-502)

Model No.

SST-RM42-502B (Black)

Chassis Form Factor

4U

Motherboard Compatibility

SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX

Material

Steel

Dual-purpose Chassis

Designed for industrial rackmount or high-end home systems, can be placed vertically or horizontally.

Distinctive Exterior

Front panel includes an anti-theft lock for added security and a USB Type-C interface.

Drive Support (External)

5.25" x 2 (compatible with 2.5" x 4 or 3.5" x 2)

Drive Support (Internal)

2.5" x 1

Power Supply

PS2 (ATX) (PSU + optical drives / 5.25" devices = 442mm) / Mini Redundant, 2U Redundant (V2.0 or after)

Cooling System (Front)

120mm x 2 (120mm x 1 fan included)

Cooling System (Rear)

80mm x 2 (80mm x 1 fan included)

Cooling Capabilities

RM42-502 comes pre-installed with 1 x 120mm front fan and 1 x 80mm rear fan, achieving front-to-back directional airflow. Unlike most rackmount cases, it supports up to 240mm liquid cooling radiators.

Radiator Support (Front)

120mm x 2 / 240mm x 1

CPU Cooler Limitation

With GPU holder: 130mm, Without GPU holder: 148mm

Expansion Card Protection

Expansion card holder and retainer are included for total support of expansion/graphics cards. They help prevent dislodging during movement and transport. The use of the expansion card retainer requires a card with an extension bracket.

Expansion Card Support

Length with expansion card retainer: 337mm, Length without expansion card retainer: 426mm, Width with GPU holder: 116mm, Width without GPU holder: 154mm

Expansion Slots

7

Front I/O Ports

USB Type-C x 1, USB 3.0 x 2, Audio x 1, MIC x 1

LED Indicators

Power status x 1, HDD activity x 1

Dimensions

430mm (W) x 176mm (H) x 468mm (D)

Net Weight

9.9kg

Extra Features

Side switch for chassis intrusion security. RM42-502 has 2 rows of sliding rail mounting holes; for a positive U position, install the rails on the lower row of mounting holes.
