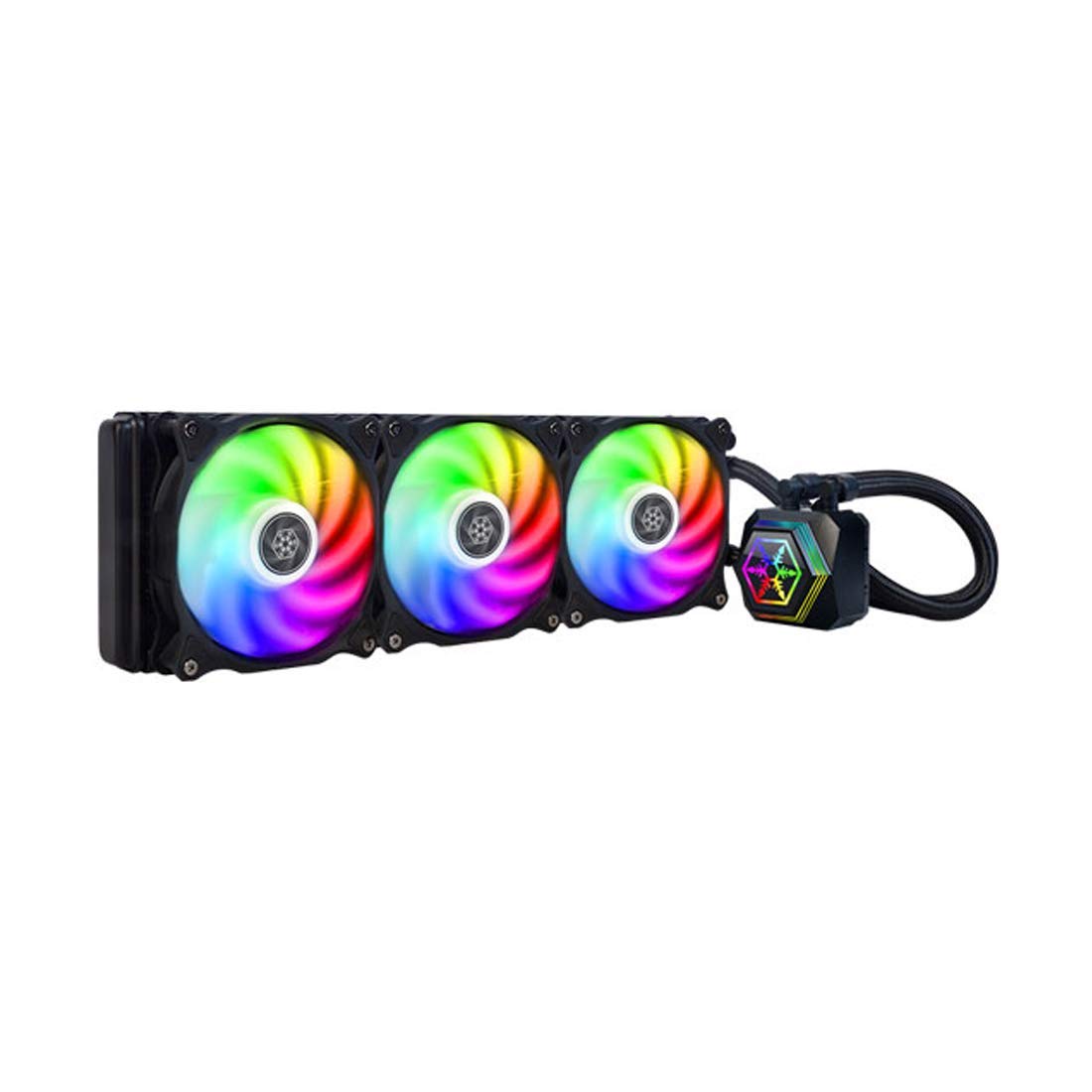

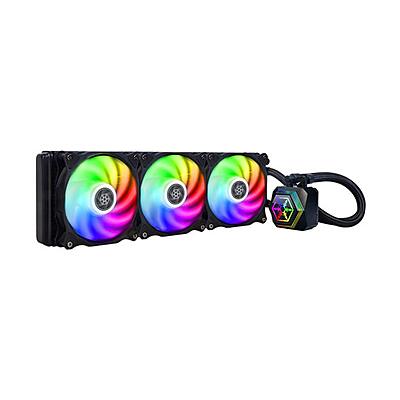

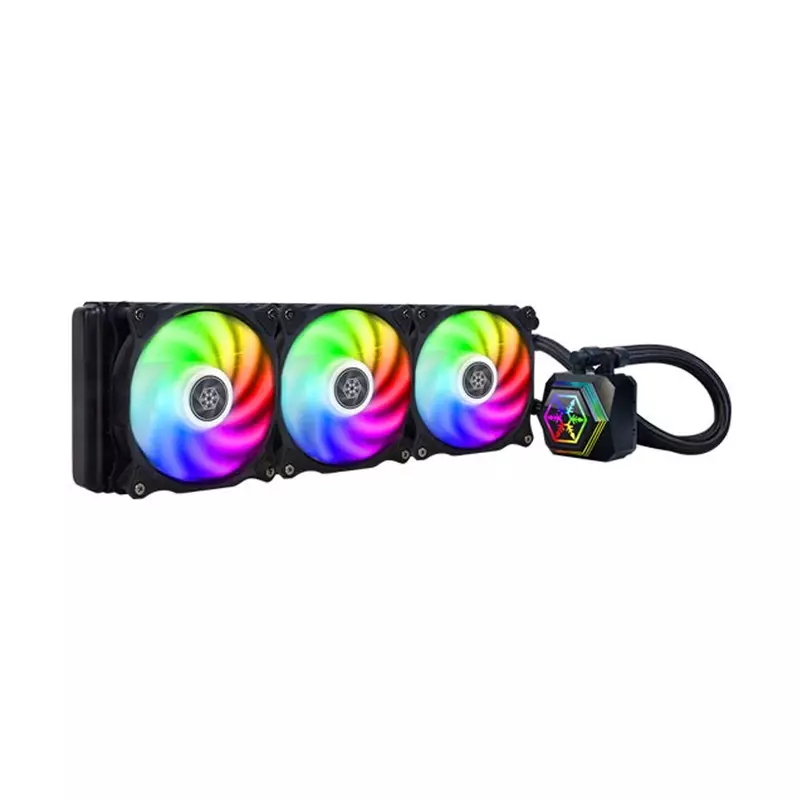

SilverStone All in One CPU Liquid Cooler 360mm (PF360-ARGB-V2)
Integrated addressable RGB lighting for water block and fan.
Rubber pads on the fan reduce vibration and noise.
Includes RGB controller with 10 modes, brightness, and speed adjustment.
Compatible with Intel LGA775/115X/1200/1366/2011/2066 & AMD AM2-AM5/FM1/FM2.
V2 version adds support for Intel LGA1700.
Attribute | Details |
---|---|
Model No. | SST-PF360-ARGB-V2 |
Application | (V2) |

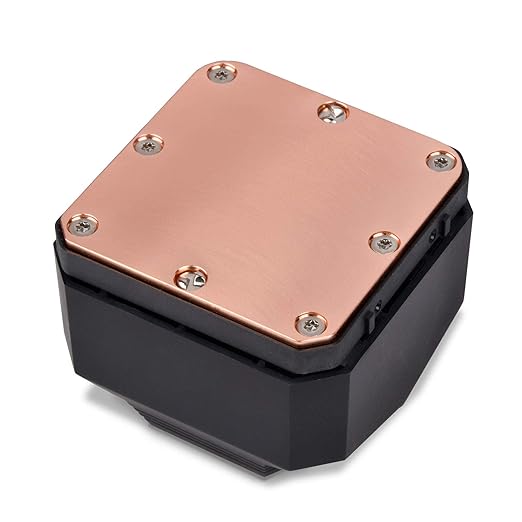

Water Block Dimensions | 61mm (L) x 61mm (W) x 50mm (H) |
Water Block Material | Copper base with plastic body |
Pump Motor Speed | 3400±10% RPM |
Pump Rated Voltage | 12V |
Pump Rated Current | 0.39A |
Radiator Dimensions | 394mm (L) x 120mm (W) x 28mm (H) |
Radiator Material | Aluminum |
Tube Length | 400mm |
Tube Material | Rubber |

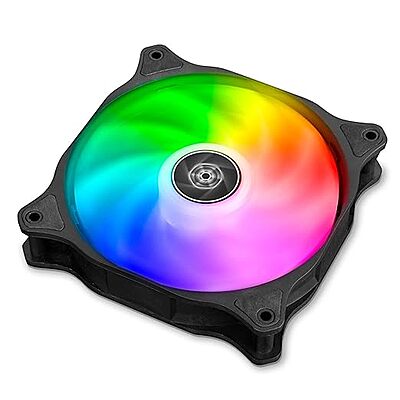

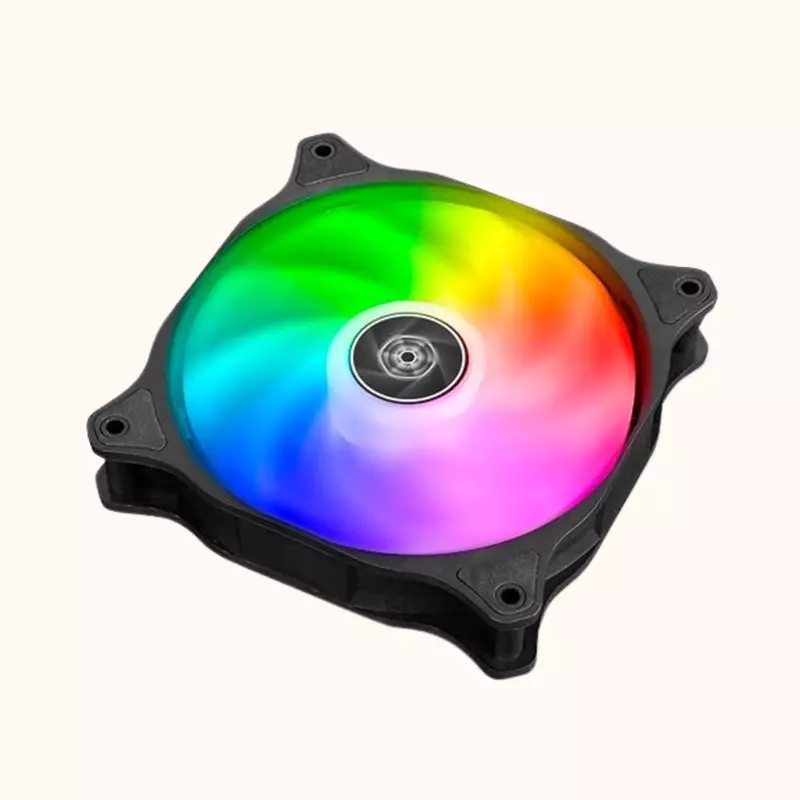

Fan Dimensions | 120mm (L) x 120mm (W) x 25mm (D) |
Fan Speed | 600~2200 RPM |
Fan Noise Level | 7.4~35.6 dBA |
Fan Rated Voltage | 12V |
Fan Rated Current | 0.32A |
Fan Max Airflow | 94CFM |
Fan Max Air Pressure | 3.53mm/H2O |
Fan Connector | 4 Pin PWM & 4-1 Pin ARGB (5V LED) |
Pressure Optimized Radiator Fan | Air Blazer 120R with ribbed edge fan blades for low noise & optimized airflow |
Automotive Grade Radiator | Anti-corrosive, resistant to vapor, liquid, grease, solvent |
0.2mm Micro Liquid Channels | Ensures even liquid flow for better heat dissipation |
Superior Motor Construction | Three-phase, six-pole motor for smoother, quieter, and more efficient operation |
High-Efficiency Multi-Chamber Pump Design | Isolates hot & cold liquid channels for better heat removal |
Integrated Addressable RGB Lighting | Available for water block and fan |
Rubber Pads on Fan | Reduces vibration and noise |
Included RGB Controller | 10 lighting modes, brightness & speed adjustment |
Compatibility | Intel LGA775/115X/1200/1366/2011/2066, AMD AM2/AM3/AM4/AM5/FM1/FM2 |
Product Code | TGSNGCKOYY683567 |
General
- CategoryCPU Fans
- Compatible DevicesDesktop
Size
- Item Height Top to Bottom3 to 4.9 cm
- Item Length Longer Edge8 to 9.9 cm
- Item Width Shorter Edge3 to 4.9 cm
