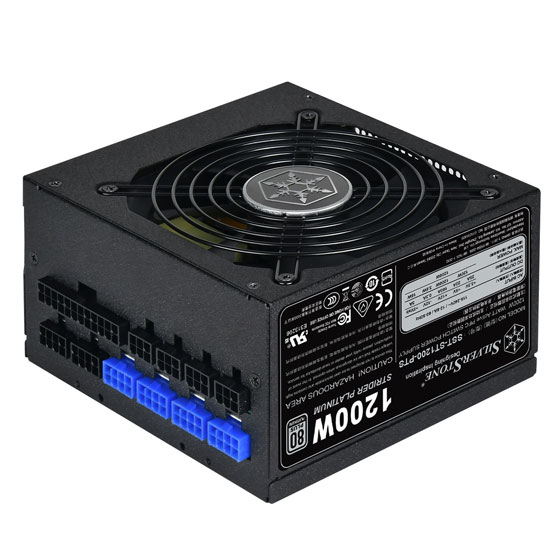

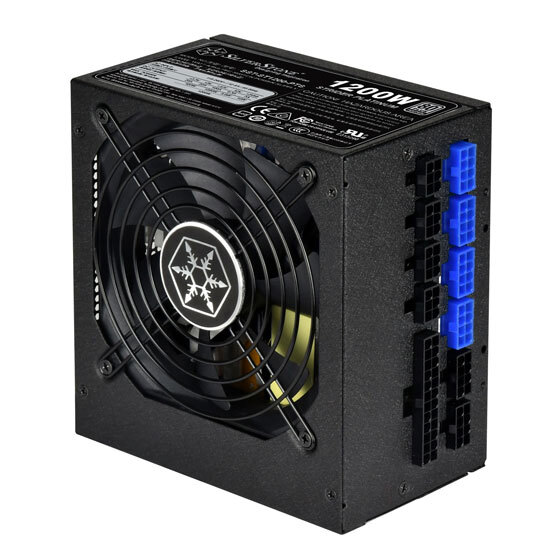

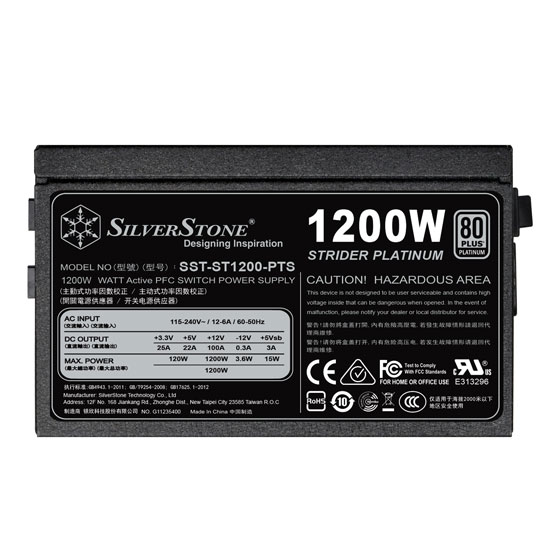

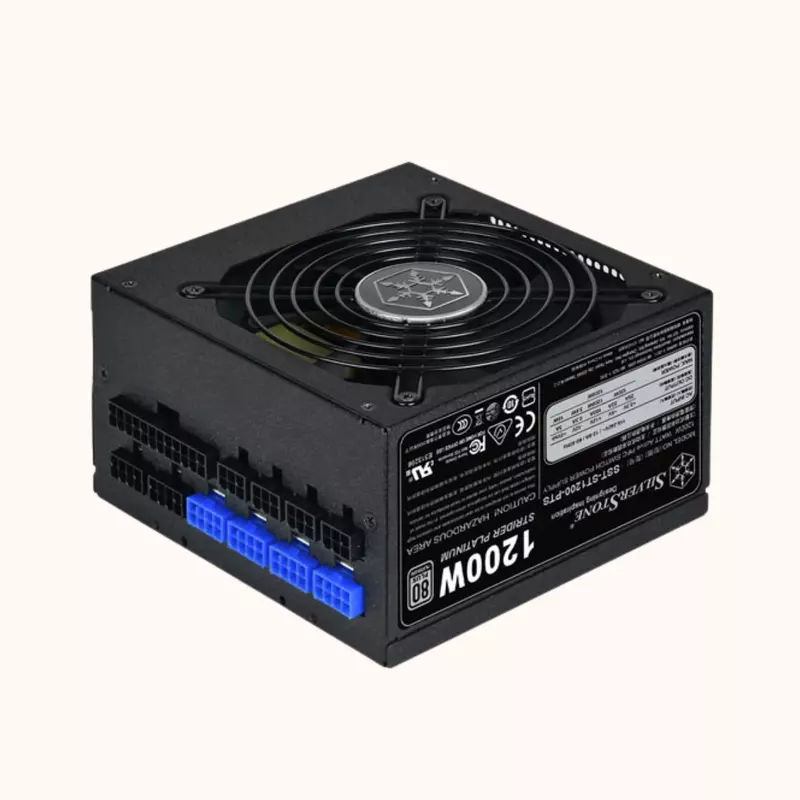

SilverStone Power Supply 1200W Fully Modular 80 Plus Platinum (ST1200-PTS)

Efficiency

80 PLUS Platinum

Cooling Fan

Single 120mm HYB fan with excellent airflow and low noise

Safety Protections

Over power protection, Over current protection, Over voltage protection, Over temperature protection, Under voltage protection, Short circuit protection

Product No.

SST-ST1200-PTS

Color

Black (Lead-Free Paint)

Max. DC Output

1200W

Power Density

664W per liter

Load Range

Output

Max. (Amps)

25A

Min. (Amps)

0A

Range (%)

±3%

Line Regulation (%)

±1%

Ripple (mVp-p)

50mV

Combined Power

+3.3V & +5V: 120W +12V: 1200W

Input Voltage

100V ~ 264V

Input Frequency

47Hz ~ 63Hz

PFC

Active PFC (PF >0.9 at full load)

Efficiency (%)

89% ~ 92% (at 20% ~ 100% loading)

MTBF

100,000 hours

Operating Temperature

0°C ~ 40°C

Connectors

1 x 24 / 20-Pin motherboard connector (600mm) 1 x 8 / 4-Pin EPS / ATX 12V connector (550mm) 1 x 8 / 4-Pin EPS / ATX 12V connector (750mm) 8 x 8 / 6-Pin PCIe connector (550mm / 150mm x 4) 8 x SATA connector (600mm / 150mm / 150mm / 150mm x 2) 6 x 4-Pin Peripheral connector (600mm / 150mm / 150mm x 2) 2 x 4-Pin Floppy connector (150mm x 2)

Cooling System

Single 120mm HYB fan

Noise Level

18 dBA minimum

Certification

80 PLUS Platinum

Form Factor

ATX

Dimension

150mm (W) × 86mm (H) × 140mm (D)

Weight

2 Kg

Other Features

Strider Gold S series includes flat 24-pin cables for better flexibility Compact 140mm depth design for high wattage PSUs 100% modular cable design for easy installation & removal Powerful single +12V rail design for future high-end upgrades & overclocking Included FF122 fan filter helps reduce dust buildup with magnetic attachment
