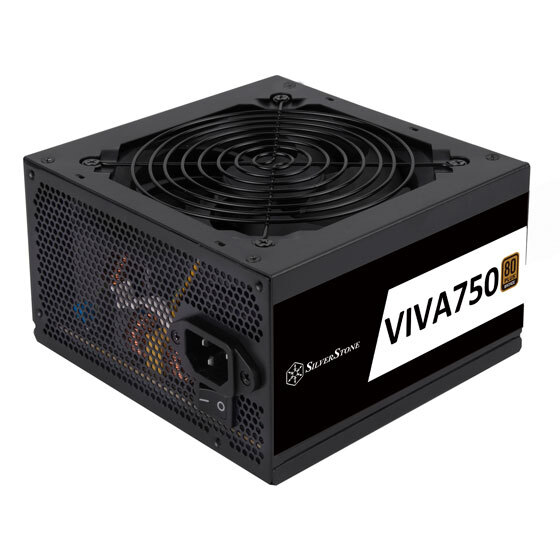

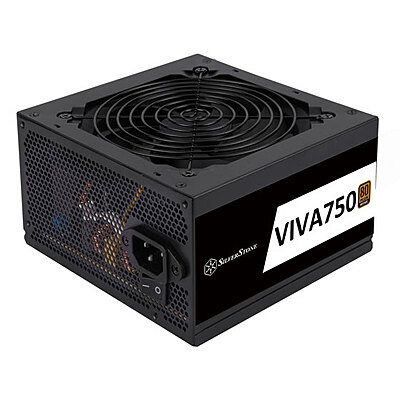

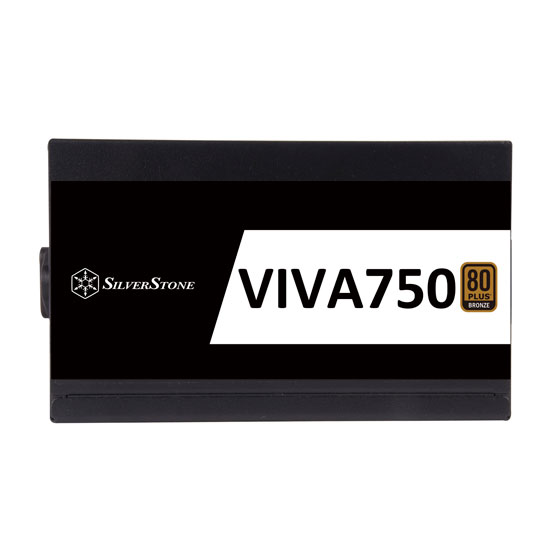

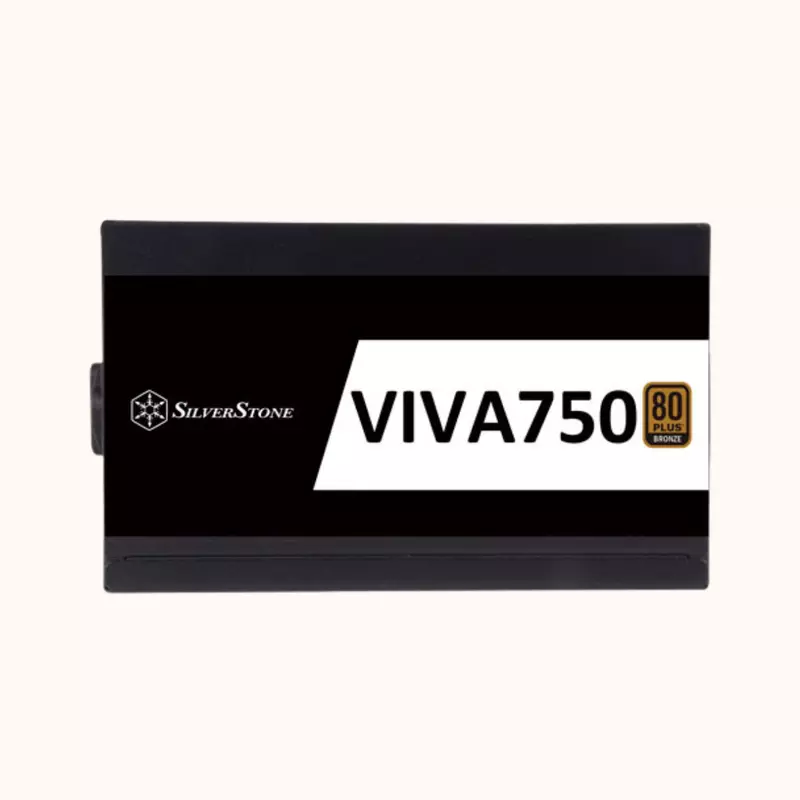

SilverStone Power supply 750Watt 80 Plus SMPS (VIVA 750 Bronze)
High efficiency with 80 PLUS Bronze certification
24/7 continuous power output with 40℃ operating temperature
Class-leading single +12V rail
Silent running 120mm fan with 18 dBA minimum
PCIe 8-pin and PCIe 6-pin connectors support
All black flat cables
Multiple protection circuitry
Feature | Specification |
|---|---|
Efficiency | 80 PLUS Bronze |
Cooling Fan | Built-in 120mm silent fan with excellent airflow and low noise |
Safety Protections | Over power protection, Over voltage protection, Short circuit protection |

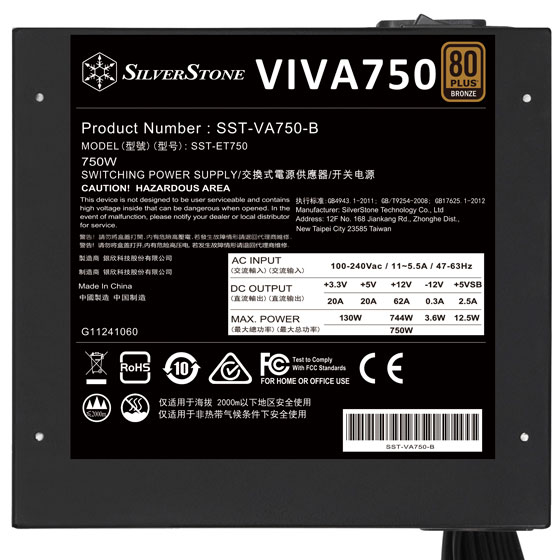

Model (Certification) | SST-ET750 |
Color | Black (Lead-Free Paint) |
Max. DC Output | 750W |
Power Density | 415W per liter |
Load Range | Output |
Max. (Amps) | 20A |
Min. (Amps) | 2.1A |
Range (%) | ±5% |
Line Regulation (%) | ±1% |
Ripple (mVp-p) | 50mV |
Combined Power | +3.3V & +5V: 120W +12V: 740W |
Input Voltage | 100 ~ 264 Vrms |
Input Frequency | 47Hz ~ 63Hz |
PFC | Active PFC (PF >0.9 at full load) |
Efficiency (%) | 82% ~ 85% (at 20% ~ 100% loading) |
MTBF | 100,000 hours |
Operating Temperature | 0°C ~ 40°C |
Connectors | 1 x 24 / 20-Pin motherboard connector (500mm) 2 x 4-Pin + 4-Pin ATX 12V connector (650mm / 150mm) 4 x 8 / 6-Pin PCIe connector (500mm / 100mm x 2) 6 x SATA connector (500mm / 150mm / 150mm x 2) 6 x 4-Pin Peripheral connector (500mm / 150mm / 150mm x 2) |
Cooling System | Single 120mm silent fan |
Noise Level | 18dBA minimum |
Certification | 80 PLUS Bronze |
Form Factor | ATX (PS2) |
Dimension | 15 cm (W) × 8.6 cm (H) × 14 cm (D) |
Weight | 1.77 Kg |
Other Features | Flat cables for better flexibility and management Powerful single +12V rail design for high-end components and overclocking GPU Support List Compatible with ATX12V v2.4 |
General
- Wattage750 Watt
- PCIe Connector (6+2)2
- SATA Connector2
- Peripheral (4-Pin)2
