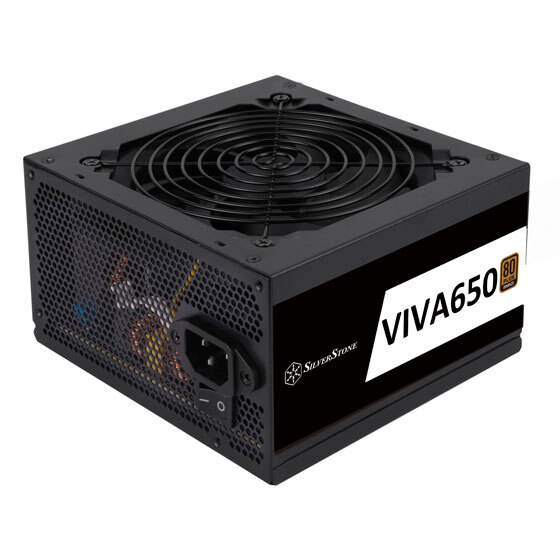

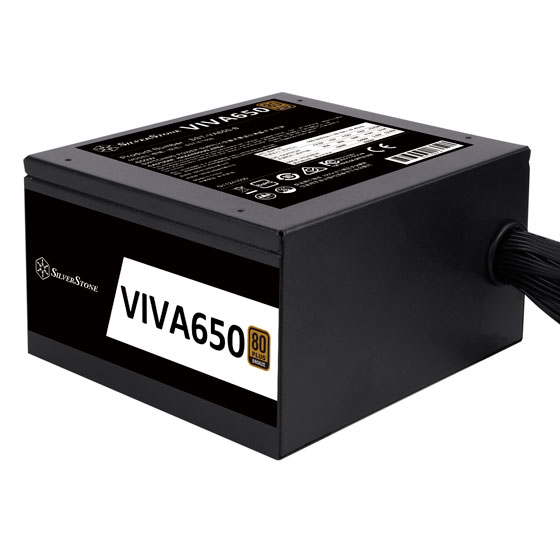

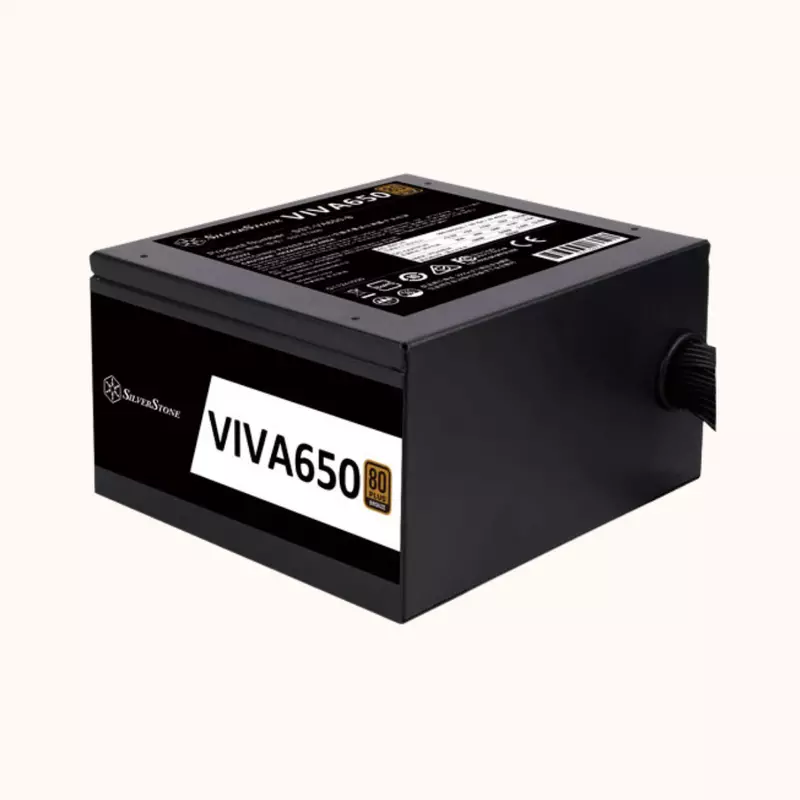

SilverStone Power supply 80 Plus Non-Modular ATX SMPS (VIVA 650 Bronze)
High efficiency with 80 PLUS Bronze certification
24/7 continuous power output with 40℃ operating temperature
Class-leading single +12V rail

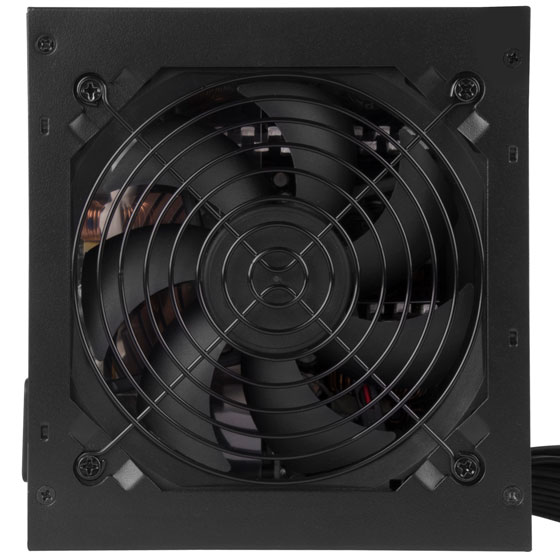

Silent running 120mm fan with 18 dBA minimum
PCIe 8 pin and PCIe 6 pin connectors support
All black flat cables
Multiple protection circuitry
Active PFC
Feature | Specification |
|---|---|
Efficiency | 80 PLUS Gold |
Cooling Fan | 120mm silent fan with excellent airflow and low noise |
Safety Protections | Over power protection, Over voltage protection, Short circuit protection |

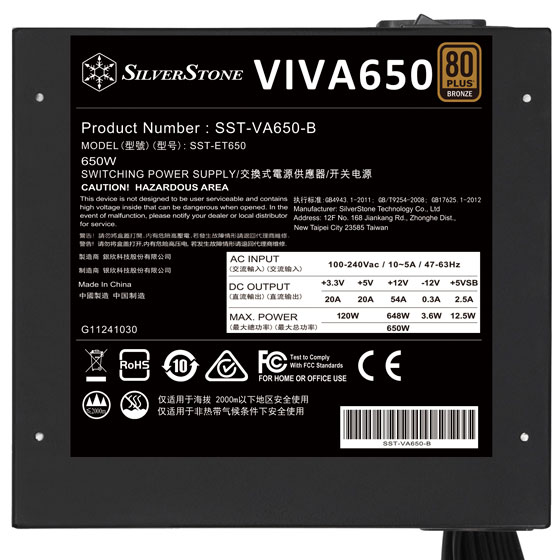

Model (Certification) | SST-ET650 |
Color | Black (Lead-Free Paint) |
Max. DC Output | 650W |
Power Density | 360W per liter |
Load Range | Output |
Max. (Amps) | 20A |
Min. (Amps) | 2.05A |
Range (%) | ±5% |
Line Regulation (%) | ±1% |
Ripple (mVp-p) | 50mV |
Combined Power | +3.3V & +5V: 120W +12V: 648W |
Input Voltage | 100 ~ 264 Vrms |
Input Frequency | 47Hz ~ 63Hz |
PFC | Active PFC (PF >0.9 at full load) |
Efficiency (%) | 82% ~ 85% (at 20% ~ 100% loading) |
MTBF | 100,000 hours |
Operating Temperature | 0°C ~ 40°C |
Connectors | 1 x 24 / 20-Pin motherboard connector (500mm) 2 x 4-Pin + 4-Pin ATX 12V connector (650mm / 150mm) 4 x 8 / 6-Pin PCIe connector (500mm / 100mm x 2) 6 x SATA connector (500mm / 150mm / 150mm x 2) 3 x 4-Pin Peripheral connector (500mm / 150mm / 150mm) |
Cooling System | Single 120mm silent fan |
Noise Level | 18dBA minimum |
Certification | 80 PLUS Bronze |
Form Factor | ATX (PS2) |
Dimension | 15 cm (W) × 8.6 cm (H) × 14 cm (D) |
Weight | 1.52 Kg |
Other Features | GPU Support List, Compatible with ATX12V v2.4 |
General
- Wattage650 Watt
- PCIe Connector (6+2)2
- SATA Connector3
- Peripheral (4-Pin)3
