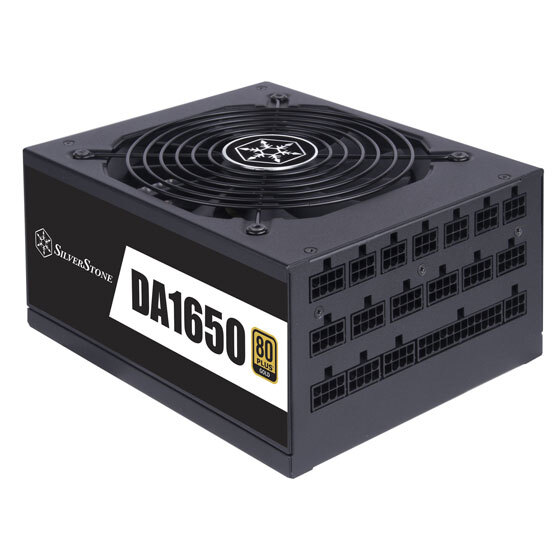

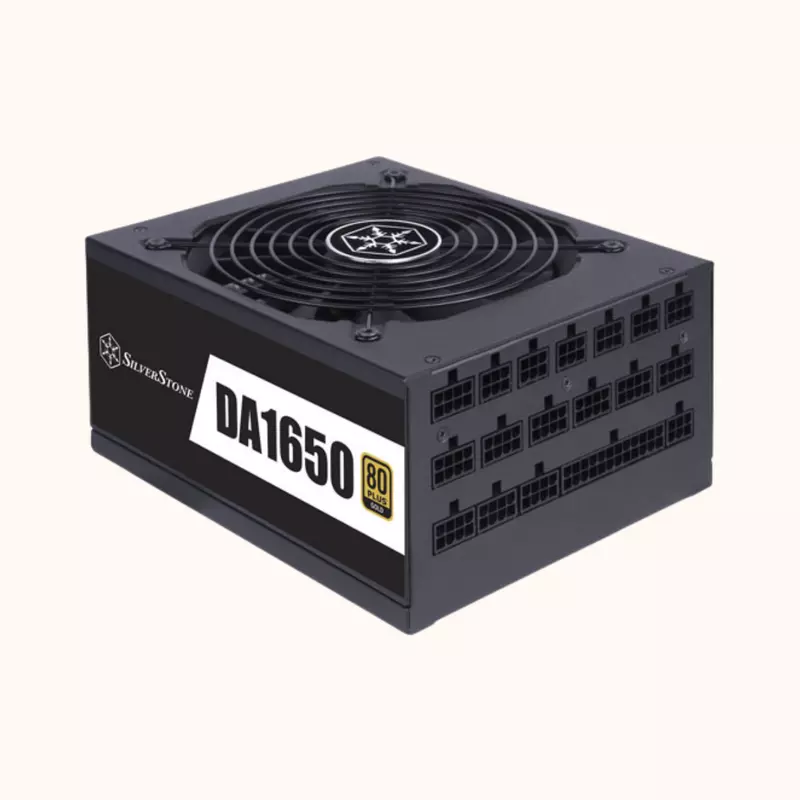

Silverstone Power Supply Fully Modular 80 Plus Gold ATX (DA1650 Gold)

Efficiency

80 PLUS Gold – Reduces wasted heat and saves electricity

Cooling Fan

Ultra-silent 135mm FDB fan with intelligent RPM control Fanless mode: Works up to 30% load (495W)

Safety Protections

Over current protection (OCP) Over power protection (OPP) Over voltage protection (OVP) Under voltage protection (UVP) Short circuit protection (SCP) Over temperature protection (OTP)

Product No.

SST-DA1650-G

Color

Black (Lead-Free Paint)

Max. DC Output

1650W

Power Density

711W per liter

Load Range

Output

Max. (Amps)

25A

Min. (Amps)

0A

Range (%)

±2%

Line Regulation (%)

±1%

Ripple (mVp-p)

40mV

Combined Power

+3.3V & +5V: 130W +12V: 1650W

Input Voltage

90V ~ 264V

Input Frequency

47Hz ~ 63Hz

PFC

Active PFC (PF >0.9 at Full Load)

Efficiency (%)

87% ~ 90% (at 20% ~ 100% loading)

MTBF

100,000 hours

Operating Temperature

0°C ~ 50°C

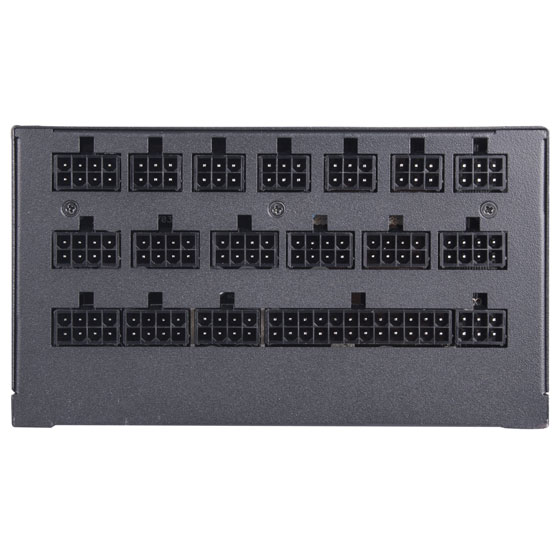

Connectors

Motherboard: 1 x 24 / 20-Pin (600mm) CPU: 4 x 8 / 4-Pin EPS / ATX 12V (750mm x 4) PCIe GPU: 8 x 8 / 6-Pin (600mm / 150mm x 4) 4 x 8 / 6-Pin (600mm x 4) SATA: 16 x SATA (600mm / 150mm / 150mm / 150mm x 4) Peripheral: 6 x 4-Pin (600mm / 150mm / 150mm x 2) Floppy: 1 x 4-Pin adapter (100mm)

Cooling System

Single 135mm FDB fan

Noise Level

0dBA ~ 36dBA

Certification

80 PLUS Gold

Form Factor

ATX / PS/2

Dimension

150mm (W) x 86mm (H) x 180mm (D)

Weight

2.09 Kg

Other Features

100% modular cable design for easy installation Flat cables for better flexibility & superior cable management 180mm depth sets a new standard for 1650W+ modular PSUs Powerful single +12V rail – Ideal for high-end components, upgrades & overclocking All-Japanese capacitors for maximum durability GPU Support List (Check the official website for compatibility updates)
