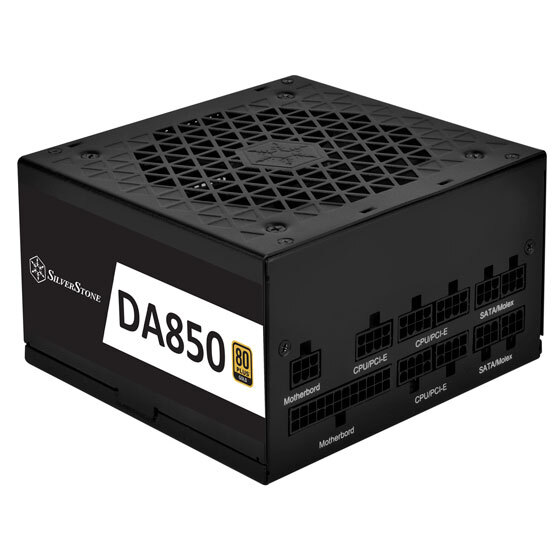

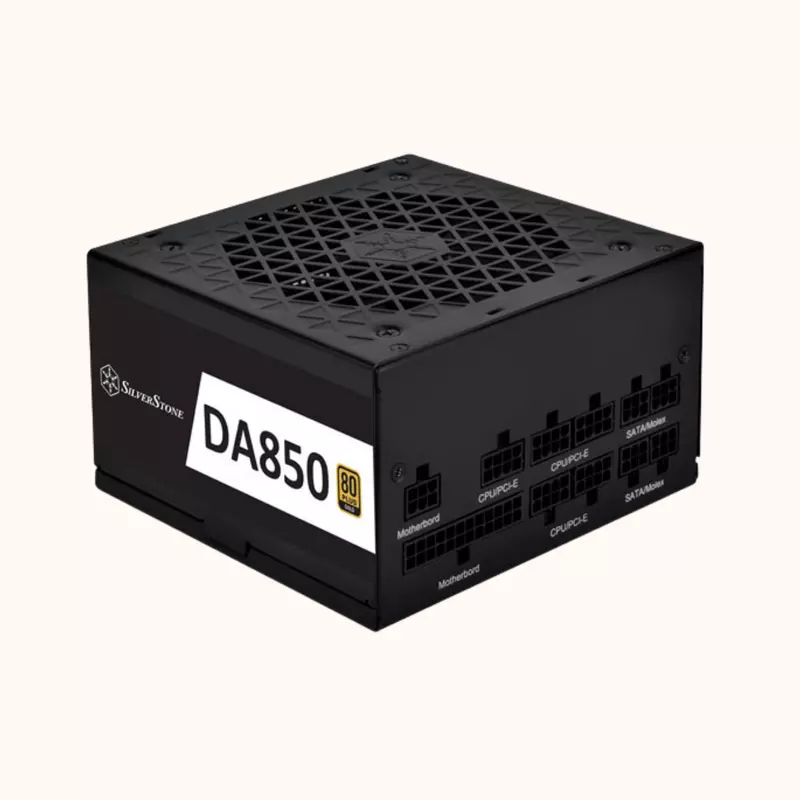

Silverstone Power Supply Fully Modular ATX (DA850 Gold)

Efficiency

80 PLUS Gold

Cooling Fan

Silent 120mm FDB fan with excellent airflow and low noise

Safety Protections

Over current protection, Over power protection, Over voltage protection, Short circuit protection, Over temperature protection

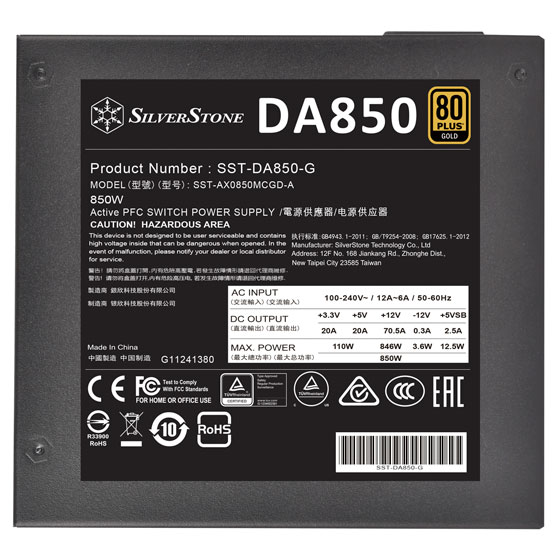

Product No.

SST-DA850-G

Model (Certification)

SST-AX0850MCGD-A

Color

Black (Lead-Free Paint)

Max. DC Output

850W

Power Density

471W per liter

Load Range

Output

Max. (Amps)

20A

Min. (Amps)

0A

Peak (Amps)

-

Range (%)

±3%

Line Regulation (%)

±1%

Ripple (mVp-p)

30mV

Combined Power

+3.3V & +5V: 110W +12V: 846W

Input Voltage

90 ~ 264 Vrms

Input Frequency

47Hz ~ 63Hz

PFC

Active PFC (PF >0.9 at full load)

Efficiency (%)

87% ~ 90% (at 20% ~ 100% loading)

MTBF

100,000 hours

Operating Temperature

0°C ~ 40°C

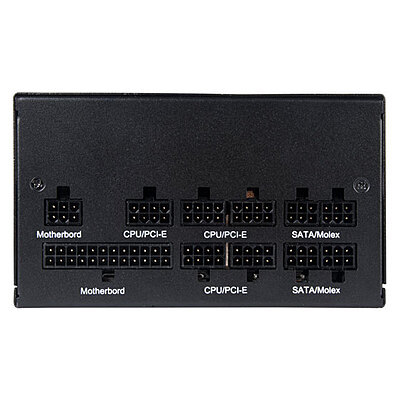

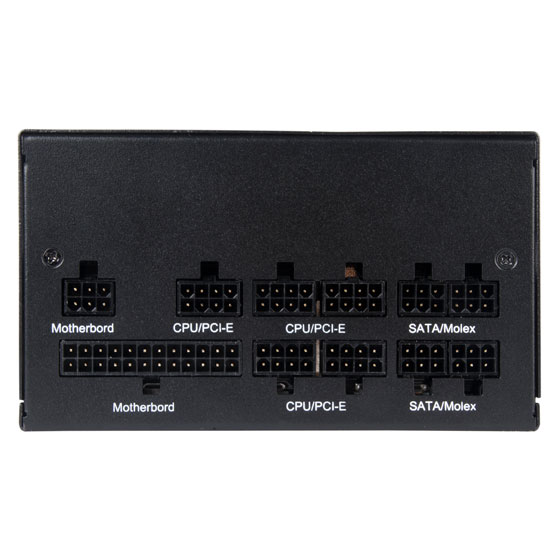

Connectors

1 x 24 / 20-Pin motherboard connector (600mm) 2 x 8 / 4-Pin EPS / ATX 12V connector (750mm x 2) 2 x 8 / 6-Pin PCIe connector (650mm / 150mm x 3) 8 x SATA connector (600mm / 150mm / 150mm / 150mm x 2) 6 x 4-Pin Peripheral connector + 2 x 4-Pin Floppy adapter connector (600mm / 150mm / 150mm / 150mm x 2)

Cooling System

Silent 120mm FDB fan

Noise Level

18dBA minimum

Certification

80 PLUS Gold

Form Factor

ATX (PS2)

Dimension

150mm (W) × 86mm (H) × 140mm (D)

Weight

1.46 Kg

Other Features

GPU Support List Specially designed cover for better heat dissipation Japanese electrolytic capacitors Flat cables for better flexibility and management Powerful single +12V rail design for high-end components and overclocking Sense wire for improved regulation performance by 1%-2%
