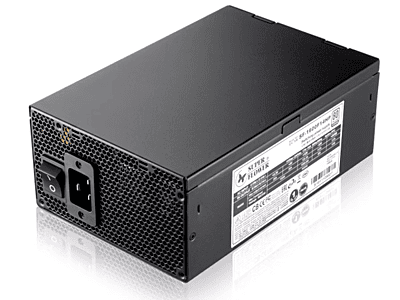

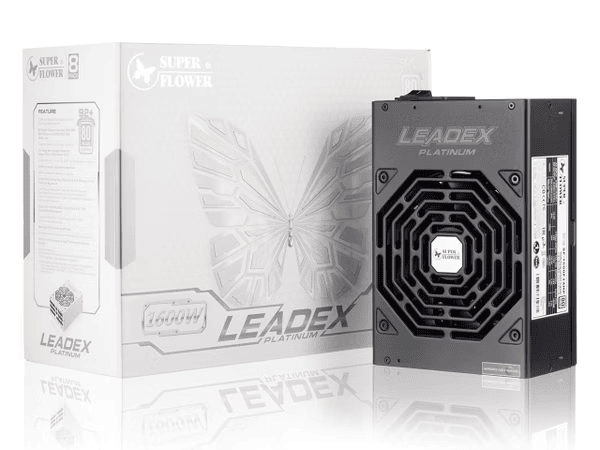

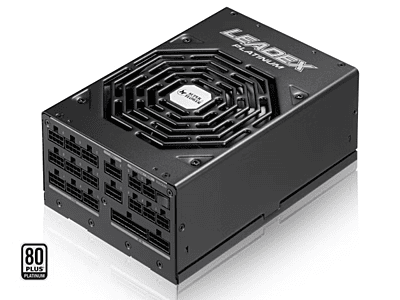

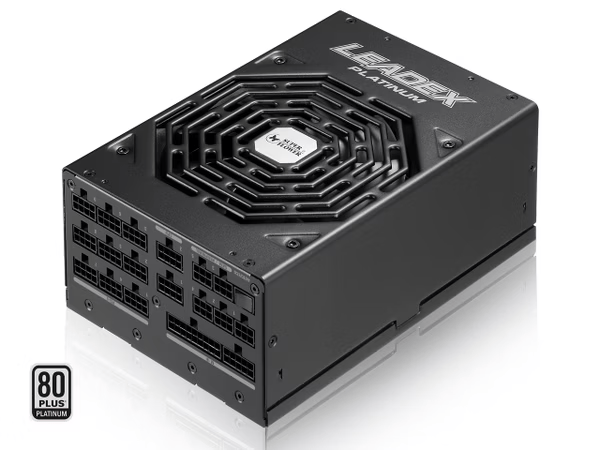

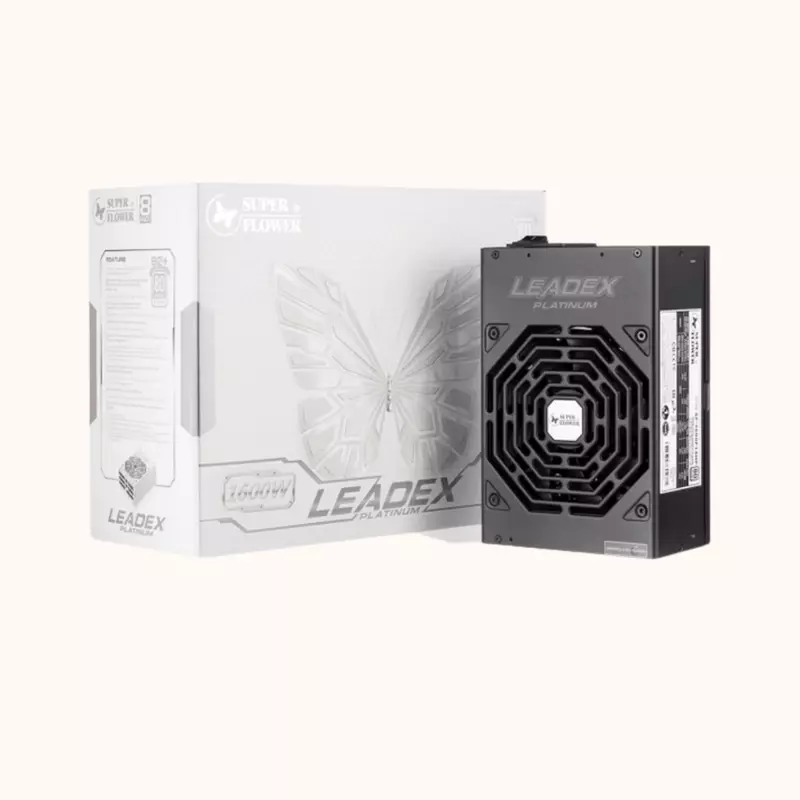

SUPER FLOWER POWER SUPPLY LEADEX PLATINUM 1600W (SF-1600F14HP)
80+ Platinum Certified – Ensures high efficiency and stable power output.

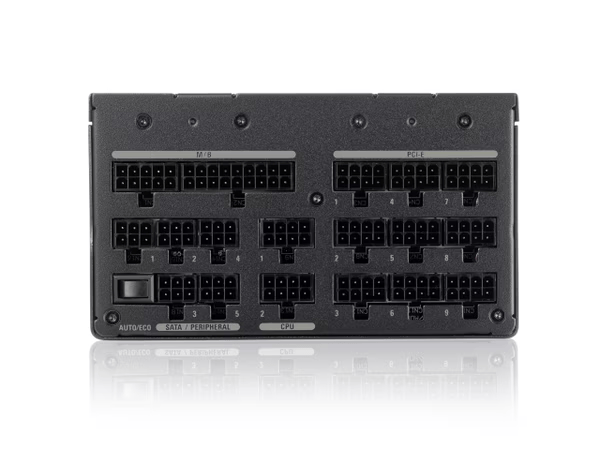

Fully Modular Design – Allows optimal cable management and better airflow.
Innovative Cable Management – Maximizes PSU cables for the best routing solution.
Intelligent Cooling Fan – 14cm two-way thermal control fan for cooling under heavy loads.
Multi-GPU Support – Compatible with NVIDIA SLI™ and ATI CrossFireX™ setups.
Feature | Description |
|---|---|
Full Modular Design | 100% modular cabling for easy cable management. |
80 PLUS® Platinum Certified | 90% - 92% - 89% efficiency at 20% - 50% - 100% load. |
Voltage & Stability | Excellent stability & voltage regulation with full-range auto voltage detection (100V~240V, Active PFC). |
Compliance | Meets ATX 12V v2.32 & SSI EPS 12V v2.92, Energy Star, and EuP regulations. |
High-Quality Components | 100% high-quality Japanese capacitors. |
Cooling System | 140mm double ball bearing cooling fan with ECO Intelligent Thermal Control. |
Protections | OVP, OCP, OPP, SCP, UVP, OTP, LVP, NLO, Surge & Inrush Protection. |
Compatibility | Supports Intel/AMD multi-core CPUs, ATX/BTX motherboards, and NVIDIA® SLI™ & ATI CrossFireX™ GPUs. |
Durability | Over 2,000 on/off test cycles. |
Eco-Friendly | RoHS/WEEE compliant, made with unleaded green materials. |
Advanced Circuitry | Bridgeless PFC & Full-Bridge LLC Resonant Circuit Design. |
Patents | Taiwan & China approved, USA, Germany & Japan pending. |
Transformer Technology | Multi-patent pending high-efficiency main transformer. |
General
- Wattage1600 Watt
- ModularFully Modular
- PCIe Connector (6+2)4
- SATA Connector3
- Peripheral (4-Pin)1
