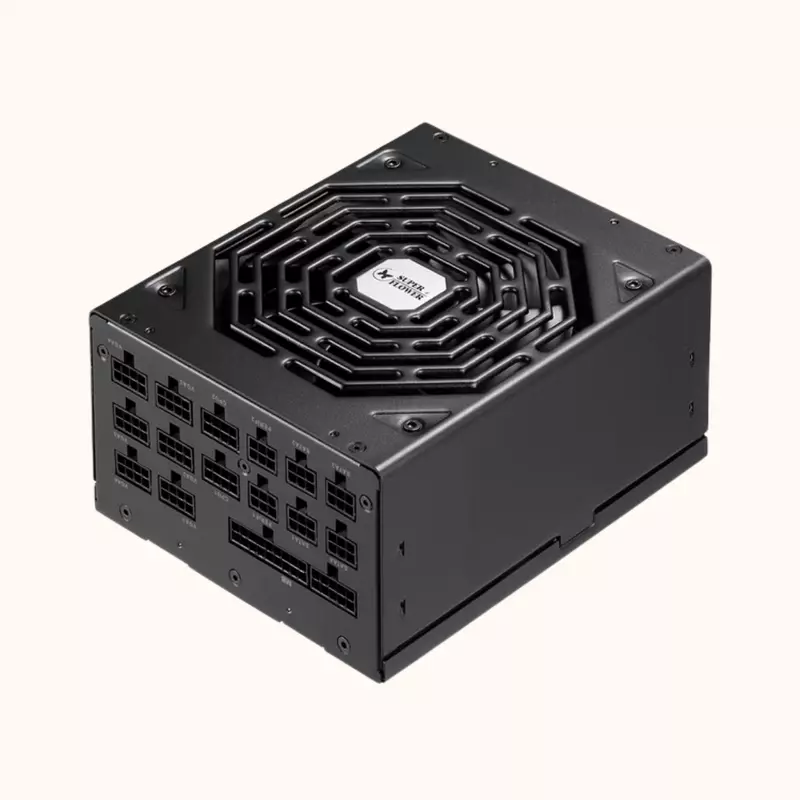

SUPER FLOWER POWER SUPPLY LEADEX PLATINUM SE 1200W (SF-1200F14MP)
80PLUS Platinum certified for high efficiency and stable power output.
100% fully modular design for easy cable management and better airflow.
14cm two-way thermal control fan for optimal cooling.
Supports NVIDIA® SLI™ & ATI CrossFireX™ high-performance GPUs.
Ideal for professional and high-performance gaming systems.
Feature | Details |
|---|---|
Certification | 80PLUS Platinum certified (90% - 92% - 89% efficiency at 20% - 50% - 100% load) |
Design | 100% Fully Modular Cabling for easy cable management |
Voltage Support | Full Range Auto Voltage Detection (100V~240V) with Active PFC |
Specifications Compliance | ATX 12V v2.2, EPS 12V v2.91, SSI EPS 12V v2.92 |
Energy Efficiency Compliance | Meets Energy Star Standard & EuP (Energy Using Products) Regulation |
Protection Features | Over Voltage, Over Current, Over Power, Short Circuit, Under Voltage, Over Temperature, No Load Operation, Surge & Inrush Protection |
CPU & Motherboard Support | Supports all Intel/AMD Multi-Core CPUs & ATX/BTX Compatible Motherboards |
GPU Support | Supports NVIDIA® SLI™ & ATI CrossFireX™ High-Performance GPUs |
Capacitors | 100% Japanese 105°C Capacitors for durability and stability |
Cooling System | 140mm Ultra Silent Dual Ball Bearing Fan with ECO Intelligent Thermal Control |
Durability Testing | More than 2,000 On/Off tests performed |
Eco-Friendly Compliance | Lead-free materials with RoHS & WEEE compliance |
Ideal Use Cases | Perfect for Professional & High-Performance Gaming Systems |
Exclusive Patents | 1. ECO Intelligent Thermal Control System 2. High Power Vertical Double Layer Main Transformer (China Patent No.: ZL2009 2 0273193.2 ; Taiwan Patent No.: M381155) |
Not Recommended For | Industrial-grade servers, ultra-high load systems (e.g., Bitcoin mining), test equipment (e.g., RAM, VGA, USB testing) |
General
- Wattage1200 Watt
- ModularFully Modular
- PCIe Connector (6+2)4
- SATA Connector4
- Peripheral (4-Pin)1
